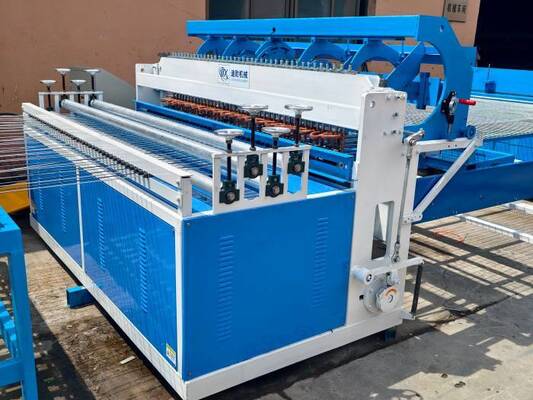

Wire Diameter 2.5-5mm Hole Size 50*50mm Steel Wire Mesh Welding Machine

Steel Wire Mesh Welding Machine Introduction

This machine adopts synchronous control technique, both welding time and cent-control welding is composed of PLC program system.
The input front-panel has two forms, touch screen and keyboard, it makes the machine more intelligent and reasonable. The weft wire supply is automatic. The greatest advantage is that it can be adjusted the distance of weft random on the same one piece of mesh sheet. Welding machine adopts new type high-efficiency transformer, shifting gear can be divided into eight level, expand the scope of welding wire diameter. Easily operation, high flexibility, the production is several times than the artificial single spot welding machine.

Detailed Introduction of Steel Wire Mesh Welding Machine

1. Payoff wire stand

This steel wire mesh welding machine adopts paying off  stands, which can greatly save the mechanical floor area. The payoff wire stands can load 300kg wires.

2. Cross wire positionin

The horizontal wire positioning device adopts a small cylinder, which is convenient and sensitive to improve the welding speed.

3. Straightening wheel system.

The wire will pass through the straightening wheel system, which can make the wire more straight and smooth, and ensure the flatness and beauty of the welded wire mesh.

4)Cross wire positioning

The horizontal wire positioning device adopts a small cylinder, which is convenient and sensitive to improve the welding speed.

5. Control cabinet.

To set the mesh specification, you only need to input the number on the control cabinet. The mechanical operation is simple and easy to learn

6. Mesh cutting machine.

The machine is equipped with a mesh cutting machine, which can set different cutting lengths on the screen to facilitate customers to produce different wire mesh sizes.

Steel Wire Mesh Welding Machine Features

1. The mesh size is directly set on the touch screen, which is convenient and simple.
2. Vibration device is added to the cross wire feeding system to prevent wire winding.
3. The longitudinal wire automatic wire feeding and the cross wire are pre-straightening and cutting.
4. Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5. The mesh panel length can be set by the touch screen in the control panel.
6. We can easily adjust the welding current when we need to weld different wire diameters.
7. We can set the output and stop the machine automatically after the mesh production finished.

Steel Wire Mesh Welding Machine Advantages

1. The whole machine is controlled by man-machine interface +plc programming control mode, with a high degree of automation.
2. It can weld galvanized wire, cold drawn wire, black wire, and other materials, with wide adaptability.
3. The unit is designed as a separable structure to facilitate specification adjustment and maintenance.
4. According to the capacitance of users, one-time or fractional welding can be adopted, with great flexibility.
5. The transformer adopts forced water cooling and is equipped with a flow protection device, so that the unit can work reliably and continuously.
6. The welding pressure shall be uniform to ensure the
quality of all welding joints.
7. The horizontal bar blanking device adopts a stepping motor for automatic feeding to reduce labor intensity and improve efficiency.
8. Full digital servo motor system ensures accurate network size.
9. The vertical dimension of the network can be changed through screen input to meet the needs of multi-specification changes in the engineering network.
10. The horizontal bar blanking position is equipped with a magnetic material throwing mechanism, which has fast blanking speed and high production efficiency.
11. The electrode is equipped with a device in place to ensure reliable and accurate blanking of the transverse reinforcement.

Technical Parameters of Steel Wire Mesh Welding Machine

Applications of Steel Wire Mesh

The steel wire mesh is used in underfloor heating installation, road surface repair, flood control structures, slope reinforcement, landslide protection, and animal husbandry.

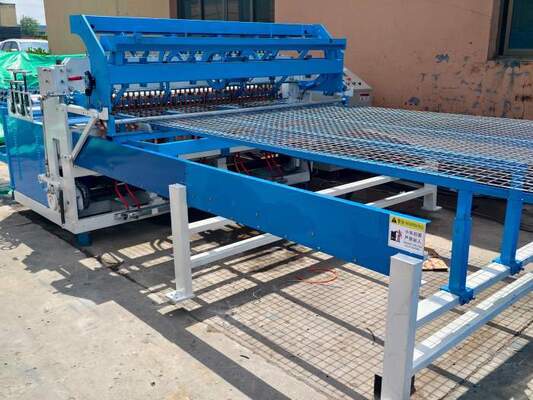

Photos of Steel Wire Mesh Welding Machine
