Length Of Fence 3m Mesh Size 50*200mm Fence Mesh Welding Machine

Length Of Fence 3m Mesh Size 50*200mm Fence Mesh Welding Machine

Introduction of Fence Mesh Welding Machine

The fence mesh welding machine is our factory independent research and development of innovative devices. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials. Easy handling, improve production efficiency and reduce labor costs. Welding wire diameter range of the device is 2.5-5.0 mm, the mesh size is 50-200 mm, stepless adjustable. The maximum width of the welding wire mesh is 2500 mm.

Detailed Introduction of Fence Mesh Welding Machine

1. Straightening wheel system.
The wire will pass through the straightening wheel system, which can make the wire more straight and smooth, and ensure the flatness and beauty of the welded wire mesh.

2. Cross wire feeding system.
The cross wire feeding system is independently designed and improved by our company, with fast and stable operation.

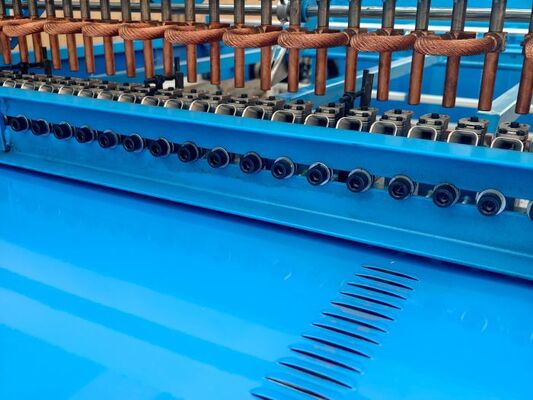

3. Welding electrode.
All welding electrodes are made of high chromium copper alloy, which is wear-resistant and high temperature resistant, extending the service life.

4. Pull mesh motor.
The mesh pulling motor uses a servo motor. The position movement is very fast and accurate, ensuring that each grid size is accurate and beautiful.

5. Mesh cutting machine.
The machine is equipped with a mesh cutting machine, which can set different cutting lengths on the screen to facilitate customers to produce different wire mesh sizes.

Advantages of Fence Mesh Welding Machine

1. Much easier machine maintenance, less machine problem.
2. Same welding pressure for each welding point, guarantee welding quality.
3. Enough welding power to weld max.5mm rebar.
4. The welding speed can be up to max.60-75 times/min.
5. For the welding electrode no need to work, only need to disconnect the electromagnetic valve.
6. Precision pressure reduction valve, ±0.5% error. High flow.

Technical Details of Fence Mesh Welding Machine

Applications of Fence Mesh

Building fences: Used for fences and safety protection on construction sites to ensure the safety and order of the construction site and prevent unauthorized personnel from entering dangerous areas.
Public places: Often used in parks, schools, stations, etc., to delineate areas and guide the flow of people, to ensure the safety and order of people.
Agricultural fields: Widely used in livestock enclosures and farmland fences to ensure the safety of crops and livestock, and to prevent wild animals and thieves.
Road traffic: As a crash protection facility, to protect people and vehicles from accidental injuries, installed on roads, highways and bridges.

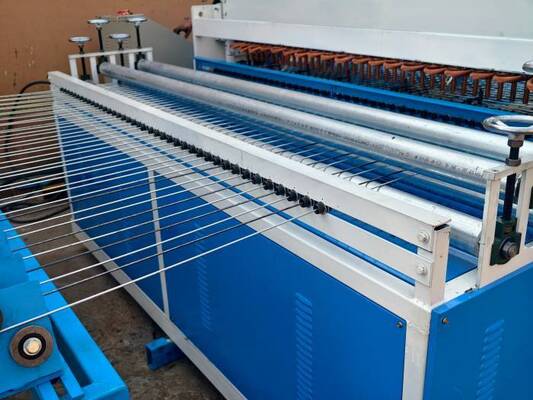

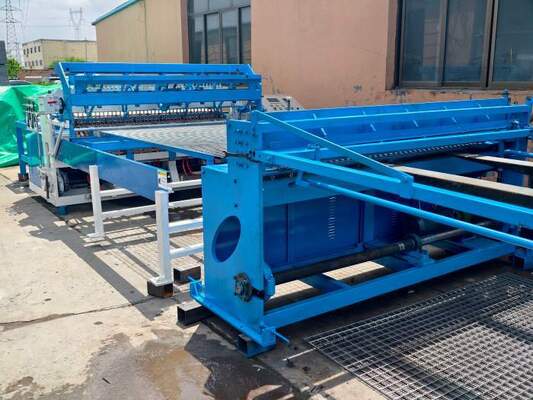

Photos of Fence Mesh Welding Machine
